LAN cables are a specific type of data cable used in computer networking. There are two different types of local area network cables. The first is a standard cable that connects a computer to a router or hub, and the second is called a crossover cable, connecting two computers together.



Lan Cable

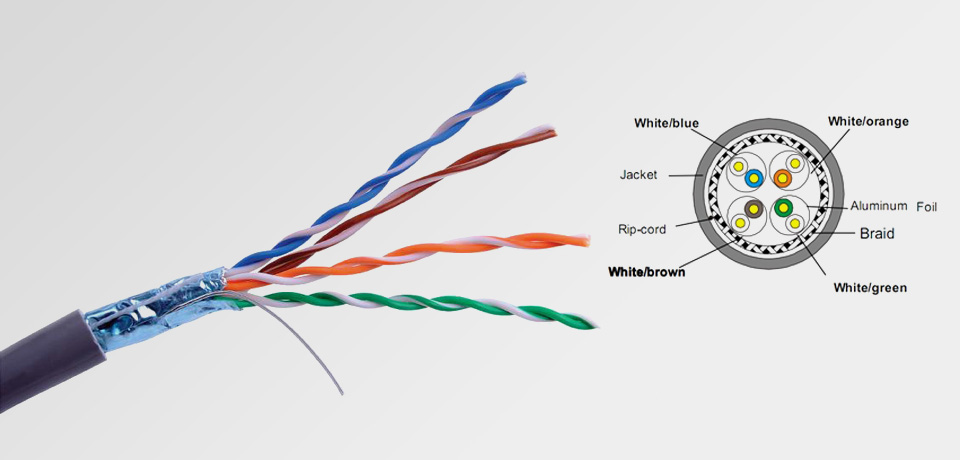

LAN CABLE NETWORKING CAT7

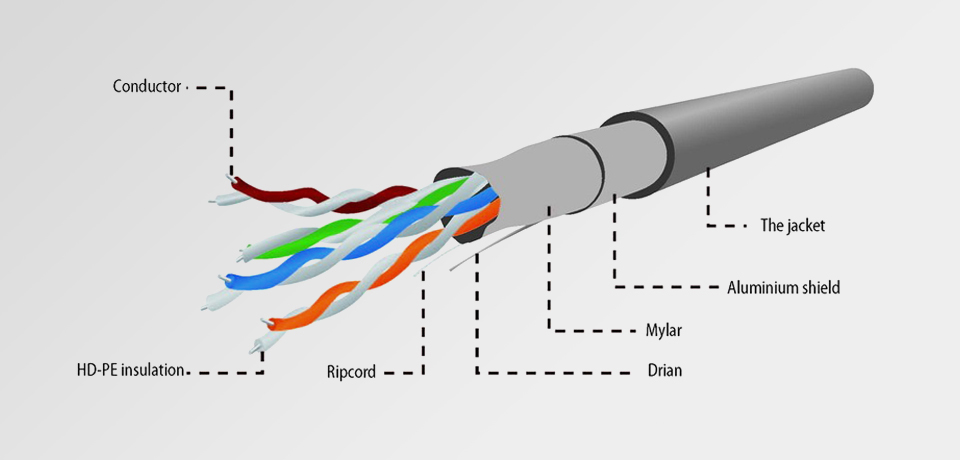

CONDUCTOR
* Raw material of the conductor: solid bare copper

* Conductor Dia.: 0.585±0.003mm (23AWG)

INSULATION
* Raw material of the conductor: F-PE

* Quantity:4 twisted pairs

Blue/white-blue; Green/white-green;
Orange/white-green;Brown/white-brown;
* Insulation Dia. : 1.45±0.005mm
* Average thickness: 0.4325 mm

Minimum point thickness: 0.43mm

3) TWISTED PAIRS SCREEN: Aluminum foil
OVERALL SCREEN
* Raw material of the screen: 96/0.10mm TC wire braiding
* Coverage rate:≥40%

JACKET RIP CORD:Nylon thread

6) SHEATH
* Sheath material: LSZH or PVC
* Nominal Dia.: 7.5 ± 0.2mm
* Average thickness: 0.65mm

* Minimum point thickness: 0.55mm

PRODUCTION DESCRIPTION
1. This kind of cable use bare copper to be the center conduction with the specification is 23AWG and PE to be the dielectric.
The jacket is made of fireproof material, which is so meanful to the Cat.7 communication;
2. This Cat.7 S/FTP cable is conform to the SIO/IEC, TIA/EIA and EN standards and the electrical characteristics are exceed the
lastest Cat.7 standards;

3. LSZH: means “Low smoke zero halogen”, which is the symbol of environmental protection;

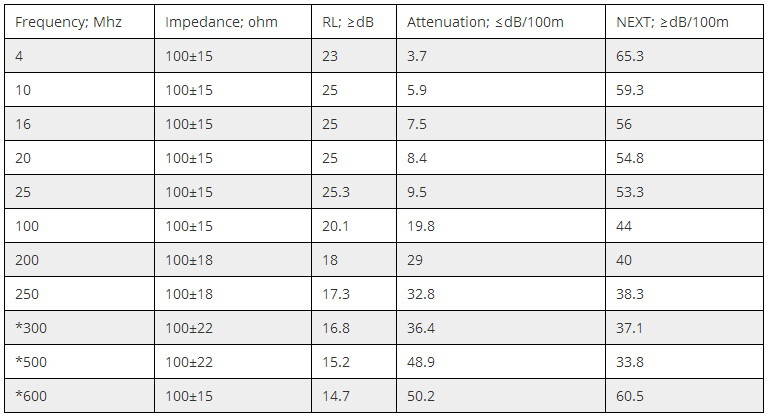

ELECTRICAL CHARACTERISTICS

1. Impedance: 100±15;
2. Static electric capacity: max:17.1nf/kf;
3. Resisitance: max:28.6/kf;
4. Unbalance resisitance: max 5%;
5. Unbalance capacity: max 330pF/100m;

6. Roted communicate rate: 65%

PHYSICAL CHARACTERISTICS
1. Copper diameter: 23AWG
2. Outer diameter: 7.9+/- 0.5mm
3. Weight: 10.5kg/kft
4. Minimum bend radius: O.D.*4-8
5. Maximum pulling tension: 10.0
6. Jacket material: PVC/LSZH

7. Roted temperature: -20~60°C

APPLICATION:
VoIP
ISDN
Token
100M TP-PDM
Analog and Data Video
TR-16 Active and Passive
155M/622M/1.2GATM
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T
DESCRIPTION:
Rated temperature:60°C,75°C,90°C
Reference standard:UL444,UL1581
Solid bare copper conductor
PVC/LSZH jacket, RoHS/REACH compliant
Comply to TIA/EIA-568-C.2-10,IEC61156-5,
EN50173&IEC11801
Operating temperature:-30~+50°C

Minimum bending radius: 8D
